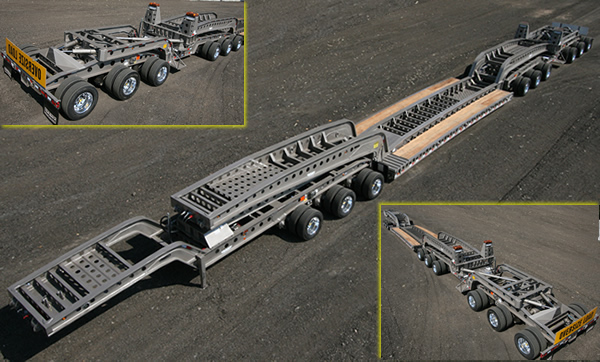

85 Ton Steerable Trailer 3+3+3
FEATURES |
||
| Standard | Optional | |
| Construction | 100% A514 T-1 STEEL | |
| Decking | Douglas fir (3″) |
Apitong (3″) |
| Gooseneck |
Mechanical Detachable |
|
| Suspension |
Rubber Bushed Walking Beam 60” Axle Spreads |
|
| Steering Dolly |
2 / 50 Ton Hydraulic Rams; 24″ Lift Manual Steering Capabilities With Kohler 25 HP Electric / Pull-start Hydraulic System |
Spare Tire Brackets |
| Axles |
25,000 lb Oil Bath |
|
| Brakes |
S Cam drum brakes |
Air Disc (Anti-Lock) |
| Tires |
265/70R x 19.5 Continental |
Auto Air Inflation System |
| Wheels |
Steel Disc, 10 Hole Hub Pilot |
Aluminum, 10 Hole Hub Pilot |
| Lighting |
Sealco Modular Sealed Wiring System LED Lights |
|
| Paint |
2 Coats Primer & Paint / White STD |
Your color |
| Overall Length |
112’ With 28’ Deck |
|
| Jeep |
2 / 50 Ton Hydraulic Rams; 24″ Lift Kohler 25 HP Electric / Pull-start Hydraulic System |
Detachable Neck / Fixed Neck Set-Up For Wet Kit On Tractor |
| Flat Deck Height |
33″ Empty estimates only |
|
| Drop Side Height |
28″ Empty estimates only |
|
| Width |
10′ STD |
|
| Estimated Weight |
76,800 Lb With 30’ Dropside Deck |
|
| Capacity | 85 Ton | |
- Measurements, clearance and dimensions are approximate and describe a standard trailer.

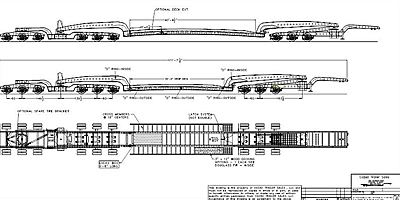

- Drawing is not to scale.
- Weights, if shown, are typical and will vary.
- All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.
WARRANTY
We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
