85 Ton Booster Trailer 3+3+3

FEATURES
Standard

Optional
Construction 100% A514 T-1 STEEL
Decking Douglas fir (3″)

Apitong (3″)
Gooseneck

Mechanical Detachable 21’-6”’ Big Neck

Mechanical Detachable 8′ STD Short Neck

Small Neck 9’w/2 pins or11′ w/3 pins
Spare Tire Bracket
Tool Box
Suspension

Air Ride


Deck / Options

10′ Wide Std

28’ Length

Special Length Optional [30’ Shown] Pin Joint For Deck Extension
Tool Box
Excavator Tray
Auxiliary Lighting Sockets [Front & Rear Of Deck] Outriggers (18) Heavy Duty 3″
2’ Front Loading Ramps / Steel / Aluminum
Axles

25,000 lb Oil Bath


Brakes

16-1/2 x 7” Drum Brake

 19.5 Air Disc (Anti-Lock)
Tires

275/70 R22.5 Continental

11R 22.5

Auto Air Inflation System
Wheels

Steel Disc, 10 Hole Stud Pilot

Aluminum, 10 Hole Stud Pilot W/Drum Brakes

Aluminum, 10 Hole Hub Pilot W/Disc Brakes
Lighting

Sealco Modular Sealed Wiring System

LED Lights


Paint

2 Coats Primer & Paint / White STD

Your color
Overall Length

108′  W / 30’ Deck

84’ W / Jeep & Big Neck Stacked On Deck



Back-End Options

60” Axle Spreads

Drop Fenders [Shown]

Pin Joint For Deck Extension
Deck Width

10′ Wide Std


Deck Height

27″ estimate only


Weight

70,800 +/-3% Estimate

W / 30’ Deck And Pin Joint


  • Measurements, clearance and dimensions are approximate and describe a standard trailer.

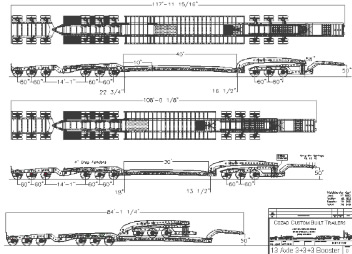

  • Drawing is not to scale.
  • Weights, if shown, are typical and will vary.
  • All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.

WARRANTY
We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
