60 Ton 10 Foot Wide Trailer
FEATURES |
||
|
Standard |
Optional | |
| Construction | 100% A514 T-1 | |
| Decking |
Douglas fir (2.5″) |
(2.5″) Apitong |
| Gooseneck(s) |
Mechanical Detachable 8′ STD Short Neck |
9’w/2 pins or10’6″ w/3 pins Spare Tire Bracket Tool Box |
| Suspension |
Walking Beam |
|
| Brakes |
Air Disc (Anti-Lock) |
|
| Tires |
215/75R x 17.5 Continental |
Auto Air Inflation System |
| Wheels |
Steel Disc, 8 Hole Hub Pilot |
8 Hole / Aluminum Hub Pilot |
| Lighting |
Sealco Modular Sealed Wiring System LED Lights |
|
| Paint |
2 Coats Primer & Paint / White STD |
Your color |
|
Deck /Options |
10′ Wide Std 24’ Length |
Tool Box Excavator Tray Auxiliary Lighting Sockets [Front & Rear Of Deck] Outriggers (12) Heavy Duty 3″ 2’ Front Loading Ramps / Steel / Aluminum |
| Back-End Options |
72” Axle Spreads |
Scraper Fenders [Front / Rear Axle] Rear Loading Ramps / 5 – 6’ / Steel / Aluminum |
| Overall Length |
46′-8” Estimate |
|
| Deck Length |
24′ |
|
| Deck Width |
10′ Wide Std |
|
| Deck Height |
27″ estimate only |
|
| Weight |
18,700 +/-3% Estimate |
|
-
Measurements, clearance and dimensions are approximate and describe a standard trailer.
-

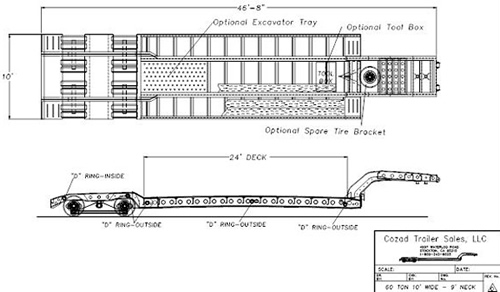

Drawing is not to scale.
-
Weights, if shown, are typical and will vary.
-
All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.
