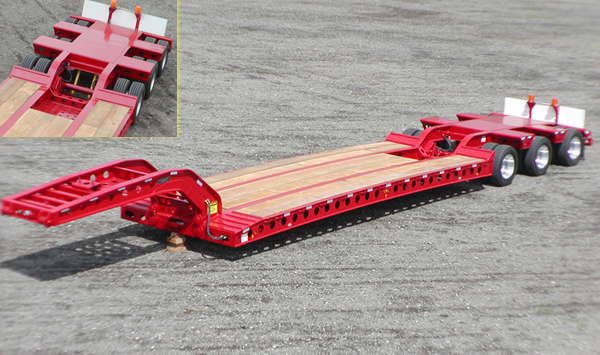

50 Ton 3-Axle Trailer
FEATURES |
||
| Standard | Optional | |
| Construction | 100% A514 T-1 Steel | |
| Decking |
Douglas fir 2-1/2″ |
2-1/2” Apitong |
| Deck / Options |
24’-6” Length STD 8’-6” Wide |
Tool Box Excavator Tray Auxiliary Lighting Sockets [Front & Rear Of Deck] Outriggers (12) Heavy Duty 3″ wide 2’ Front Loading Ramps / Steel / Aluminum |
|
Back-End /Options |
60” Axle Spreads |
Scraper Fenders [Front / Mid / Rear Axle] Cover Plate Over Center Rear Loading Ramps / 5 – 6’ / Steel / Aluminum |
| Gooseneck(s) |
Mech. Detachable |
Hydraulic Spare Tire Bracket {Mechanical Neck Only] |
| Suspension | Air Ride | |
| Length | 52′ | |
| Brakes |
S Cam drum brakes |
Air Disc (Anti-Lock) |
| Tires |
265/70 R19.5 |
Auto Air Inflation System |
| Wheels |
Steel Disc, 10 Hole Hub Pilot |
Aluminum, 10 Hole Hub Pilot |
| Lighting |
Sealco Modular Sealed Wiring System LED Lights |
|
| Paint |
2 Coats Primer & Paint / White STD |
Your color |
| Axles |
25,000 lb Oil Bath |
|
| Flat Deck Height |
27″ Empty estimates only |
|
| Overall Length |
Under 53’’ With 24’-6” Deck / 11’ Neck |
|
| Estimated Weight |
(12) Heavy Duty 3″ wide |
|
- Measurements, clearance and dimensions are approximate and describe a standard trailer.

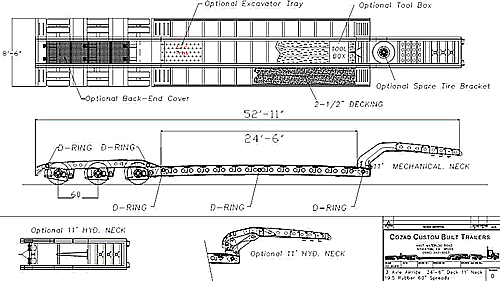

- Drawing is not to scale.
- Weights, if shown, are typical and will vary.
- All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.
WARRANTY
We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
