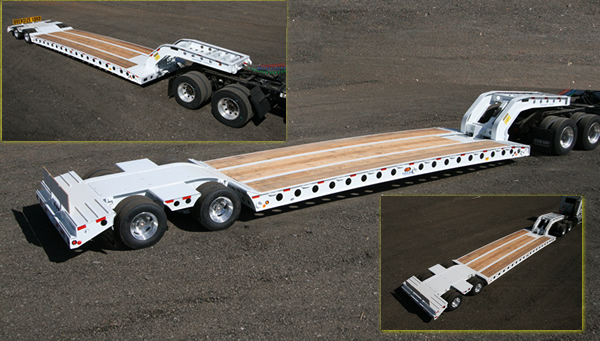

35 Ton 2-Axle 4-Frame Narrow-Neck Trailer
FEATURES |
||
| Standard | Optional | |
| Construction | 100% A514 T-1 | |
| Decking | Douglas fir (2.5″) | (2.5″) Apitong |
| Deck / Options | 24’-5” Length STD
8’-6” Wide |
Tool Box
Auxiliary Lighting Sockets [Front & Rear Of Deck] Outriggers (12) Heavy Duty 3″ wide 2’ Front Loading Ramps / Steel / Aluminum |
| Deck Height | 27 ” Empty / 21” Loaded [Estimate Only] | |
| Back-End / Options | 12” Standard Beavertail
54” Axle Spreads |
Extended beavertail [Shown]
Scraper Fenders [Front / Rear Axle] Cover Plate Over Back-End [Center] Rear Loading Ramps / 5 – 6’ / Steel / Aluminum |
| Gooseneck(s) | 8’ Mechanical Detachable | 9’ Mechanical Detachable
Spare Tire Bracket |
| Axles | 25,000 lb Oil Bath | |
| Suspension | Air Ride | |
| Brakes | 12-1/4 x 7” Drum Brake | 17.5 Air Disc (Anti-Lock) |
| Tires | 235/75R x 17.5 Continental | Auto Air Inflation System |
| Wheels | Steel Disc, 10 Hole Stud Pilot | Aluminum / 10 Hole Stud Pilot
Aluminum / 8 Hole Hub Pilot W/Air Disc Brakes |
| Lighting | Sealco Modular Sealed Wiring System
LED Lights |
|
| Paint | 2 Coats Primer & Paint / White STD | Your color |
| Overall Length | 44′-10” Estimate With 8’ Goosenec | |
| Estimated Weight | 13,500 +/-3% | |
-
Measurements, clearance and dimensions are approximate and describe a standard trailer.
-

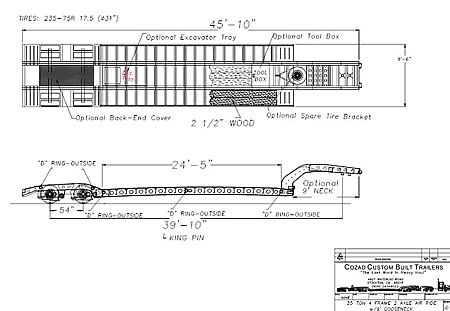

Drawing is not to scale.
-
Weights, if shown, are typical and will vary.
-
All specifications, illustrations and information contained herein are based on the latest information available at the time of publication. Cozad Trailer Sales, LLC reserve the right to make any changes without notice or obligation.
WARRANTY
We warrant this product for one year from the date of delivery to be free from defect in material and workmanship; also that it will perform its intended job satisfactorily when under normal use and service. Our responsibility is limited to making good at our facility by repair or replacement of any part which upon our examination is found to be defective in its construction or application. All freight charges are for our customers account. All vendor parts carry their own warranty.
